Moto

Floodlight

The Arcluce Moto is an architectural floodlight that offers high flexibility and high-performance lighting. A wide range of optics and an adjustable bracket allows for a complete 180° rotation of Moto, making it perfect for decorating outdoor environments such as entrances of shops, signs and architectural attractions. Brackets allowing Moto to be fixed to roof eaves are also available, as are RGBW versions.

Also available in Highbay version: Arcluce Moto3

Multi pole-mount option available. See ‘Grapes’ brochure under ‘Downloads’ tab for more.

OUTDOORAll Outdoor• Security & Flood
Arcluce Moto
Arcluce Moto
RGBW Variant Displayed
Arcluce Moto
Arcluce Moto
Arcluce Moto
Flood Optic Displayed
Arcluce Moto
Elliptic Optic Displayed
Features
  • Lumens
3,100L - 8,450L
  • Wattage
35W - 76W
  • CCT
3000K | 4000K | RGBW
  • CRI
80 CRI
  • Ratings
IP66 | IK10
  • OPtions
RGBW | DALI
  • Warranty
5 Years
  • Highlight
Wide range of accessories
  • Highlight
See brochure for RGBW variants
Benefits
  • Flexibility thanks to range of brackets and optics
  • Beautiful European styling
  • Built tough to withstand the rigours of the urban environment
Colours
Notes
  • *Only standard variations displayed. Contact ADLT for additional information & photometric files.
  • All lumen and wattage figures nominal.
Applications
Variations
PRODUCT NUMBEROPTICSWATTAGENOMINAL LUMENSCCTCRIWIRINGWIDTHHEIGHTDEPTH
0653016A-840-16 Narrow 12°35W3750lm4000K80ON/OFF201mm269mm175mm
0653015A-840-16 Flood 37°35W3300lm4000K80ON/OFF201mm269mm175mm
0653017A-840-16 Very Wide Flood 66°35W3100lm4000K80ON/OFF201mm269mm175mm
0653018A-840-16 Ultra Wide Flood 99°35W3900lm4000K80ON/OFF201mm269mm175mm
0653021A-840-16 Asymmetric Imax=45°35W3300lm4000K80ON/OFF201mm269mm175mm
0653023A-840-16Asymmetric Imax=60°35W3200lm4000K80ON/OFF201mm269mm175mm
0653019A-840-16 Elliptic 54° x 12°46W4100lm4000K80ON/OFF201mm269mm175mm
0653001A-840-16 Elliptic 12° x 54°46W4100lm4000K80ON/OFF201mm269mm175mm
0653004A-840-16 Narrow 12°76W8450lm4000K80ON/OFF201mm269mm175mm
0653003A-840-16 Flood 37°76W7400lm4000K80ON/OFF201mm269mm175mm
0653005A-840-16 Very Wide Flood 66°76W7000lm4000K80ON/OFF201mm269mm175mm
0653006A-840-16 Ultra Wide Flood 99°76W8800lm4000K80ON/OFF201mm269mm175mm
0653024A-840-16 Asymmetric Imax=60°76W7400lm4000K80ON/OFF201mm269mm175mm
0653022A-840-16 Asymmetric Imax=45°76W8300lm4000K80ON/OFF201mm269mm175mm
[table “” not found /]

[table “” not found /]

Product Code Builder

Select your preferred product options below to generate and customise your product code.

  • Denotes non-standard option. May result in longer lead time. Contact ADLT for further information.

Selected Options

    Select options to see them here.

Product code

Waiting for selections...

Once completed, your product code will be displayed here and automatically added to the enquiry form below to assist with your enquiry.

Downloads

Brochures & Catalogues

Spec Sheets

Enquire Now

    Recent Moto lighting projects
    Related to the Moto

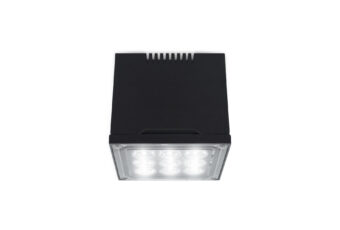

    Highbay
