HOLOBAY – HOL1

Highbay

The Holophane HOLOBAY represents the next generation of high-performance LED high bays, built for the most demanding industrial, commercial, and educational environments.

Its precision-engineered die-cast aluminum and prismatic glass design delivers exceptional efficiency, visual comfort, illumination and volumetric light. With easy installation, low maintenance, and advanced control options, the HOLOBAY offers superior lighting performance (efficacies up to 177 lumens per watt) and long-term energy savings.

The HOL1 is the smaller version of the HOLOBAY, you can view the larger version here: HOL2

To watch a promotional video about the HOLOBAY click the following link: HOLOBAY video

INDOOR All Indoor • High Bay & Low Bay • Sports & Leisure • Wall & Ceiling • Warehouse, Industrial & Harsh Environments

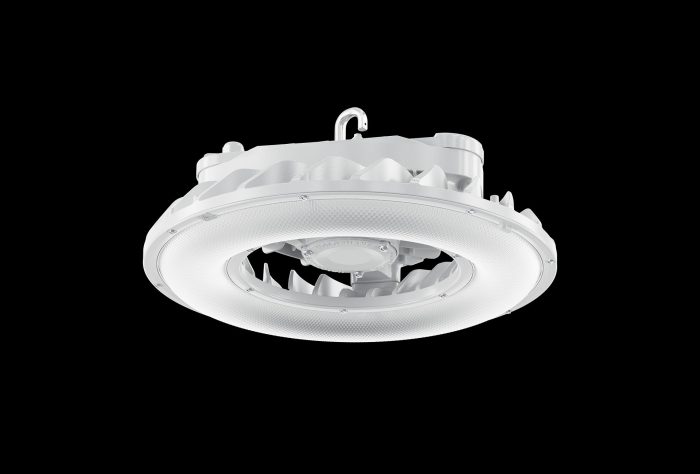

Holophane HOL1 Gallery 1

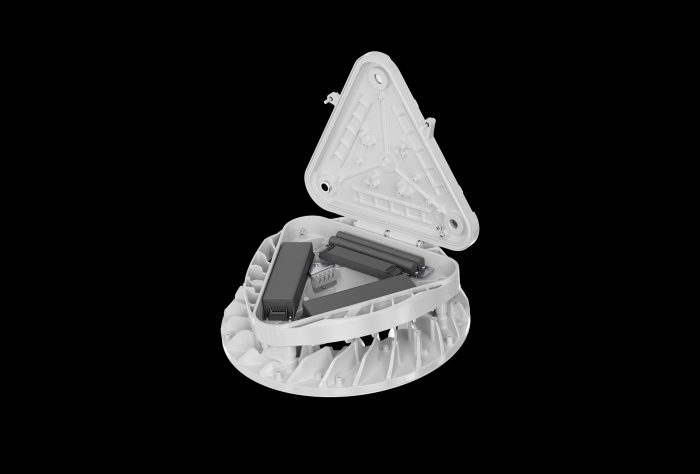

Holophane HOL1 Gallery 3

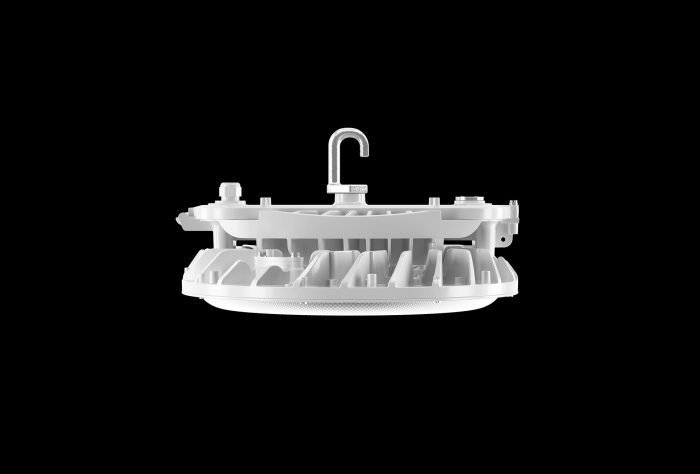

Holophane HOL1 Gallery 2

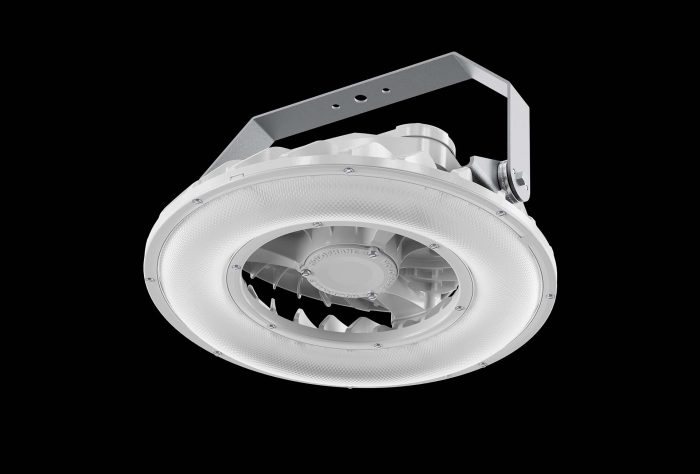

Holophane Holobay 1

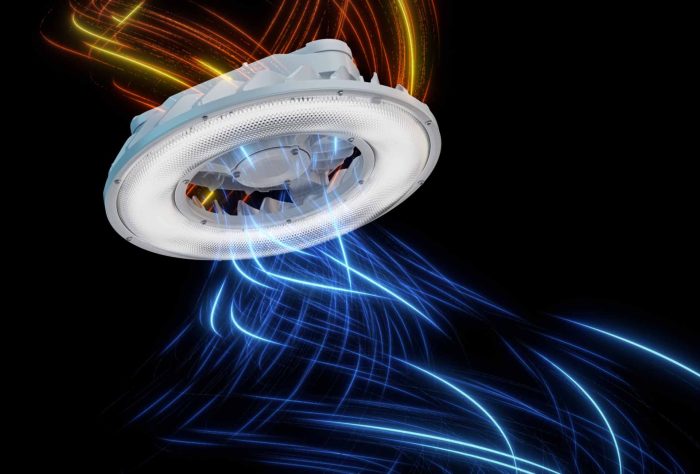

Holophane Holobay 2
Features
  • Lumens
12,000L - 40,000L
  • Wattage
70W - 254W
  • CCT
4000K | 5000K
  • CRI
70 CRI | 80 CRI
  • Ratings
IP65 | IK07
  • OPtions
DALI | Zhaga
  • Tolerence
-20°C to +70°C
  • Warranty
5 Years (Extended Available*)
Benefits
  • Exceptional optical performance
  • Scalable system due to two sizes and a variety of mounting options
  • Features an integral PIR option with mounting heights from 4.5 – 16m. Integrates with Holophane’s HOLOSAir system for cloud control, grouping, and advanced reporting.
Colours
C1-Smooth-White-2
Notes
  • *Extended warranty (up to 10 years) available for approved projects.
  • All lumen and wattage figures nominal.
Applications
Variations
PRODUCTLUMENSCCTCRIOPTICCOLOURLENSDIMMING / OPTIONS
HOL112,000 - 40,0004000K
5000K		70 CRI
80 CRI
.ND* Narrow Distribution
.MD Medium Distribution
.WD Wide Distribution
.AD* Aisle Distribution

*Distributions .AD (Aisle) & .ND (Narrow) are not available with silicone optics. 		.C1 White (RAL 9016)
RAL**** RAL specific		.FGL Frosted Glass Lens
.SO Silicone Optic		DALI / Zhaga
See Spec Sheet For Complete List of Options
[table “” not found /]

[table “” not found /]

Product Code Builder

Select your preferred product options below to generate and customise your product code.

  • Denotes non-standard option. May result in longer lead time. Contact ADLT for further information.

Selected Options

    Select options to see them here.

Product code

Waiting for selections...

Once completed, your product code will be displayed here and automatically added to the enquiry form below to assist with your enquiry.

Downloads

Brochures & Catalogues

IES & Design Files

Enquire Now

    Related to the HOLOBAY - HOL1
    Highbay
    HOLOBAY - HOL2

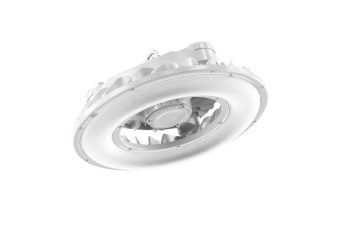

    Holophane HOL2 Feature
