Quadrio180

Bollard

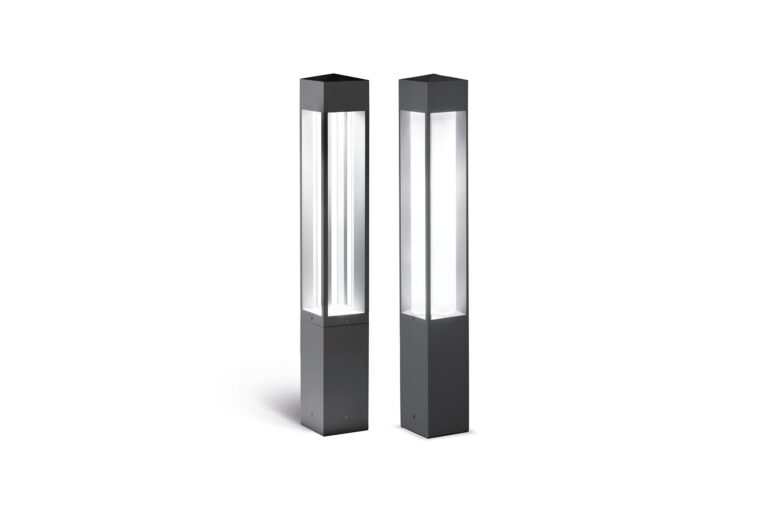

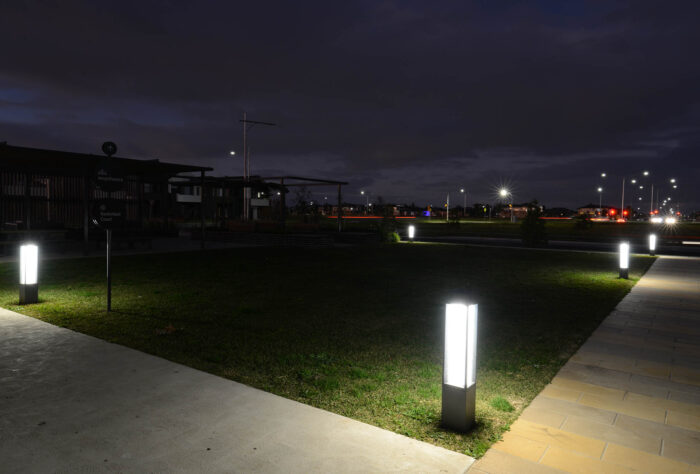

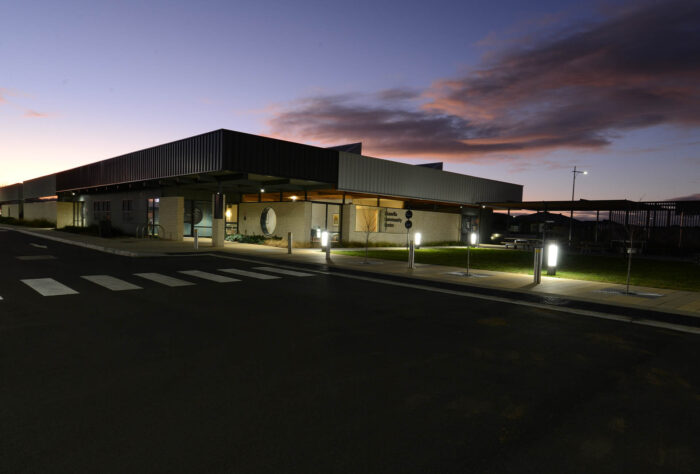

Stunning from every angle, the Arcluce Quadrio180 Bollard combines elegance and simplicity to create the perfect luminaire for lighting urban areas like public squares and building entrances.

Quadrio generates radial light with a choice of Comfort or Performance variants.

Also available in Ultra Tall 3.5m, 4m, 4.5m variants: Arcluce Quadrio180 Urban

OUTDOORBollards• All Outdoor
Arcluce Quadrio180
Arcluce Quadrio180
Arcluce Quadrio180
Arcluce Quadrio180
Arcluce Quadrio180

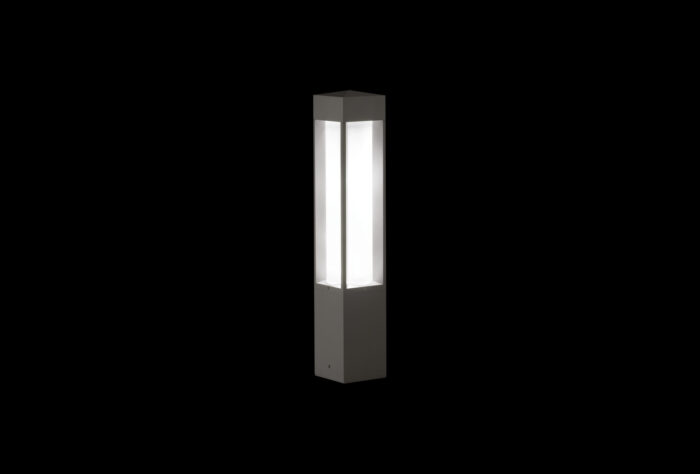

Performance Variant Displayed
Arcluce Quadrio180
Comfort Variant Displayed
Features
  • Lumens
1,650L - 2,350L
  • Wattage
27W - 37W
  • CCT
3000K | 4000K
  • CRI
80 CRI
  • Ratings
IP66 | IK07
  • OPtions
DALI
  • Warranty
5 Years
Benefits
  • No upward light (full cut-off)
  • Elegant and simple styling with modern technology
  • Safely illuminate pathways and urban settings
Colours
Notes
  • *Only standard variations displayed. Contact ADLT for additional information & photometric files.
  • All lumen and wattage figures nominal.
Applications
Variations
PRODUCT NUMBERTYPEOPTICSWATTAGENOMINAL LUMENSCCTCRIWIRINGDIAMETERHEIGHT
0868000A-840-16 ComfortRadial27W1650lm4000K80ON/OFF180mm1000mm
0868014A-840-16 PerformanceRadial37W2350lm4000K80ON/OFF180mm1000mm
[table “” not found /]

[table “” not found /]

Downloads

Brochures & Catalogues

Spec Sheets
